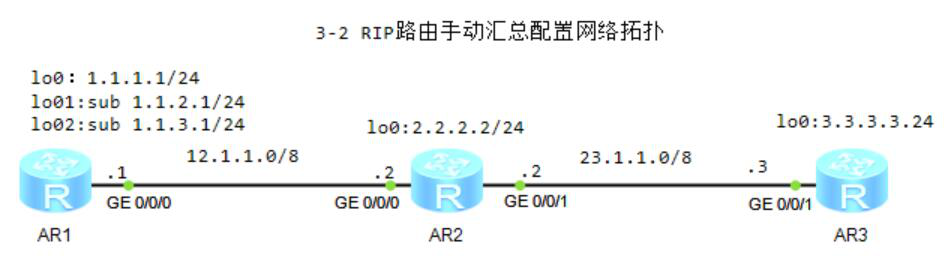

3.2 RIP手动汇总配置-大赛人网

1.R1基本配置

[R1]interface LoopBack 0
[R1-LoopBack0]ip address 1.1.1.1 24
[R1-LoopBack0]quit
[R1-LoopBack0]ip address 1.1.2.1 24 sub
[R1-LoopBack0]ip address 1.1.3.1 24 sub

2.R2基本配置

[R2]interface LoopBack 0
[R2-LoopBack0]ip address 2.2.2.2 24

3.R3基本配置

[Huawei]interface LoopBack 0
[Huawei-LoopBack0]ip address 3.3.3.3 24

4.R3查看RIP路由表

[R3]display ip routing-table protocol rip
Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        1.1.1.0/24  RIP     100  2           D   23.1.1.2        GigabitEthernet0/0/1
        1.1.2.0/24  RIP     100  2           D   23.1.1.2        GigabitEthernet0/0/1
        1.1.3.0/24  RIP     100  2           D   23.1.1.2        GigabitEthernet0/0/1
        2.2.2.0/24  RIP     100  1           D   23.1.1.2        GigabitEthernet0/0/1
       12.0.0.0/8   RIP     100  1           D   23.1.1.2        GigabitEthernet0/0/1

5.R2出口做路由汇总，R3查看RIP路由

[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]rip summary-address 1.1.0.0 255.255.252.0
[R3]display ip routing-table protocol rip
Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        1.1.0.0/22  RIP     100  2           D   23.1.1.2        GigabitEthernet0/0/1
        2.2.2.0/24  RIP     100  1           D   23.1.1.2        GigabitEthernet0/0/1
       12.0.0.0/8   RIP     100  1           D   23.1.1.2        GigabitEthernet0/0/1
