第6章 以太网安全-6.1 MAC地址表

1.查看MAC地址表

图片[1]-第6章 以太网安全-6.1 MAC地址表-大赛人网

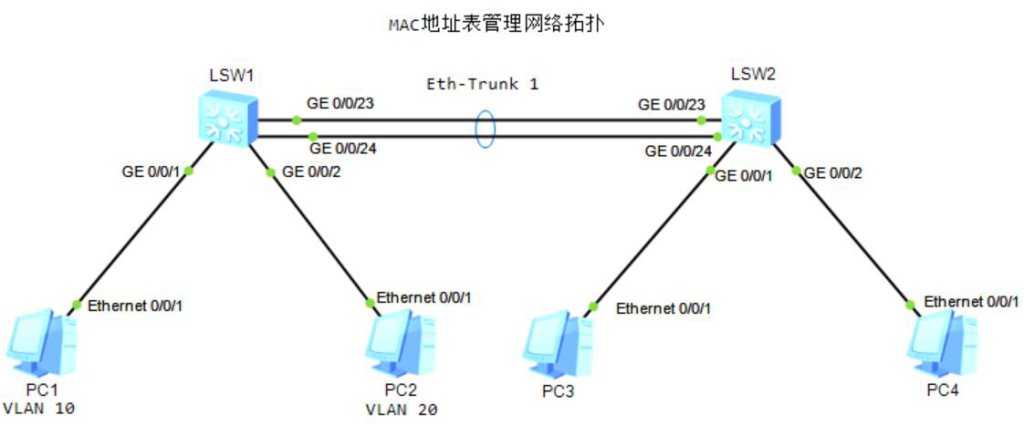

图6-1 MAC地址表管理网络拓扑

1)SW1配置

[SW1]vlan batch 10 20
[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-GigabitEthernet0/0/1]port default vlan 10
[SW1-GigabitEthernet0/0/1]quit
[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type access
[SW1-GigabitEthernet0/0/2]port default vlan 20

[SW1]interface Eth-Trunk 1
[SW1-Eth-Trunk1]trunkport GigabitEthernet 0/0/23 to 0/0/24
[SW1-Eth-Trunk1]port link-type trunk
[SW1-Eth-Trunk1]port trunk allow-pass vlan 10 20
[SW1-Eth-Trunk1]load-balance src-dst-mac
[SW1]interface Vlanif 10
[SW1-Vlanif10]ip address 192.168.10.254 24
[SW1-Vlanif10]quit
[SW1]interface Vlanif 20
[SW1-Vlanif20]ip address 192.168.20.254 24

2)SW2配置

[SW2]vlan  batch 10 20
[SW2]interface Eth-Trunk 1
[SW2-Eth-Trunk1]port link-type trunk
[SW2-Eth-Trunk1]port trunk allow-pass vlan 10 20
[SW2-Eth-Trunk1]load-balance src-dst-mac
[SW2]interface GigabitEthernet 0/0/23
[SW2-GigabitEthernet0/0/23]eth-trunk 1
[SW2]interface GigabitEthernet 0/0/24
[SW2-GigabitEthernet0/0/24]eth-trunk 1

3)查看MAC地址表

[SW1]display mac-address
MAC Address    VLAN/       PEVLAN CEVLAN Port            Type      LSP/LSR-ID
               VSI/SI                                              MAC-Tunnel
5489-98b0-3df1 10          -      -      GE0/0/1         dynamic   0/-
5489-98a8-4965 20          -      -      GE0/0/2         dynamic   0/-

2.配置动态MAC表项老化时间(默认300s)

[SW1]mac-address aging-time 600

3.配置静态MAC表项

[SW1]display mac-address
MAC Address    VLAN/       PEVLAN CEVLAN Port            Type      LSP/LSR-ID
5489-98b0-3df1 10          -      -      GE0/0/1         dynamic   0/-
5489-98a8-4965 20          -      -      GE0/0/2         dynamic   0/-
5489-98ed-726d 10          -      -      Eth-Trunk1      dynamic   0/-
4c1f-cc4d-4af5 10          -      -      Eth-Trunk1      dynamic   0/-
4c1f-cc4d-4af5 20          -      -      Eth-Trunk1      dynamic   0/-
5489-98d0-773a 20          -      -      Eth-Trunk1      dynamic   0/-

[SW1]mac-address static 5489-98b0-3df1 GigabitEthernet 0/0/1 vlan 10
[SW1]mac-address static 5489-98a8-4965 GigabitEthernet 0/0/2 vlan 20

[SW1]display mac-address static
MAC Address    VLAN/       PEVLAN CEVLAN Port            Type      LSP/LSR-ID
               VSI/SI                                              MAC-Tunnel
5489-98a8-4965 20          -      -      GE0/0/2         static    -
5489-98b0-3df1 10          -      -      GE0/0/1         static    -

4.限制MAC地址学习数量

[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]mac-limit maximum 1
