1.R1配置
[R1]ipv6
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ipv6 enable
[R1-GigabitEthernet0/0/0]ipv6 address 2012::1 64
[R1]interface LoopBack 0
[R1-LoopBack0]ipv6 enable
[R1-LoopBack0]ipv6 address 2001::1 128
2.R2配置
[R2]ipv6
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ipv6 enable
[R2-GigabitEthernet0/0/0]ipv6 address 2012::2 64
[R2]interface LoopBack 0
[R2-LoopBack0]ipv6 enable
[R2-LoopBack0]ipv6 address 2002::1 128
3.R1连通性测试R2直连地址
<R1>ping ipv6 2012::2
PING 2012::2 : 56 data bytes, press CTRL_C to break
Reply from 2012::2
bytes=56 Sequence=1 hop limit=64 time = 70 ms

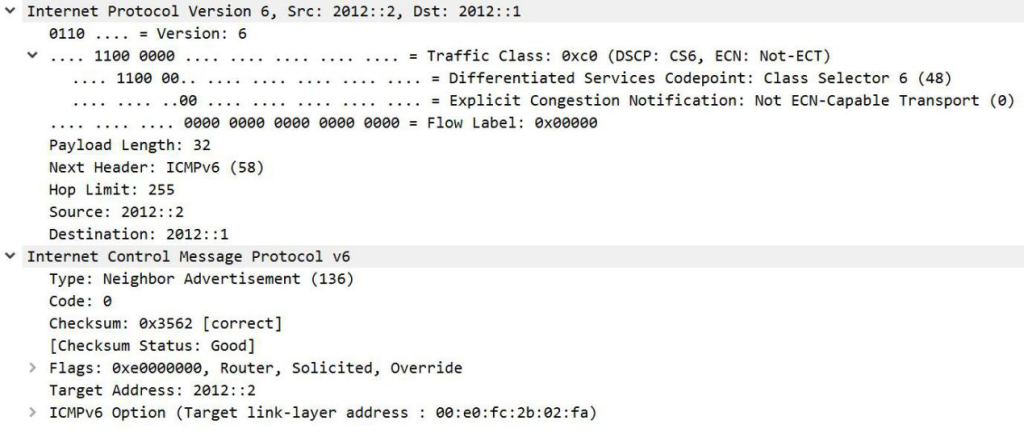

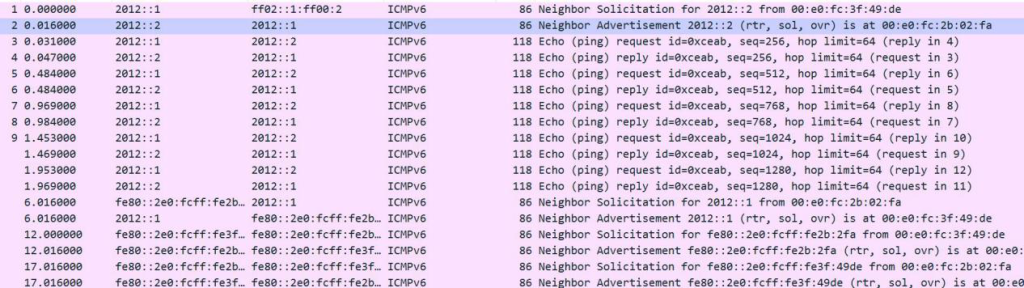

4.R1的G0/0/0接口抓包
