18.8 BFD基础

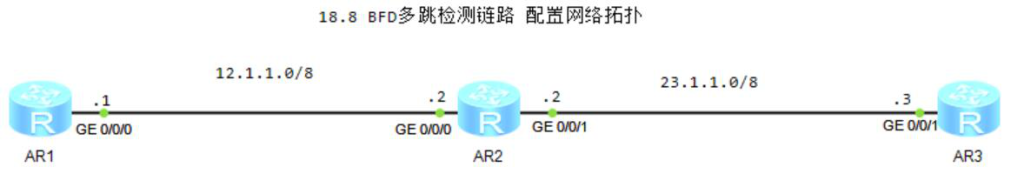

2.配置BFD多跳检测链路

1）R1配置

[R1]bfd
[R1]bfd R1toR3 bind peer-ip 23.1.1.3
//配置多跳检测BFD会话
[R1-bfd-session-r1tor3]discriminator local 10
//配置本地标识符为10
[R1-bfd-session-r1tor3]discriminator remote 20
//配置远端标识符为20
[R1-bfd-session-r1tor3]commit
[R1]ip route-static 23.0.0.0 255.0.0.0 12.1.1.2
/配置静态路由

2）R2配置

[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ip address 12.1.1.2 8
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ip address 23.1.1.2 8

3）R3配置

[R3]bfd
[R3]bfd R3toR1 bind peer-ip 12.1.1.1
[R3-bfd-session-r3tor1]discriminator local 20
[R3-bfd-session-r3tor1]discriminator remote 10
[R3]ip route-static 12.0.0.0 255.0.0.0 23.1.1.2

4）验证配置,“(Multi Hop) State”状态为Up

<R1>display bfd session all verbose
Session MIndex : 256       (Multi Hop) State : Up        Name : r1tor3
  Local Discriminator    : 10               Remote Discriminator   : 20
  Session Detect Mode    : Asynchronous Mode Without Echo Function
  BFD Bind Type          : Peer IP Address
  Bind Session Type      : Static
  Bind Peer IP Address   : 23.1.1.3
  Bind Interface         : -
  Track Interface        : -
  FSM Board Id           : 0                TOS-EXP                : 7
  Min Tx Interval (ms)   : 1000             Min Rx Interval (ms)   : 1000
  Actual Tx Interval (ms): 1000             Actual Rx Interval (ms): 1000
  Local Detect Multi     : 3                Detect Interval (ms)   : 3000
  Echo Passive           : Disable          Acl Number             : -
  Destination Port       : 3784             TTL                    : 254
  Proc Interface Status  : Disable          Process PST            : Disable
  WTR Interval (ms)      : -
  Active Multi           : 3
  Last Local Diagnostic  : No Diagnostic
  Bind Application       : No Application Bind
  Session TX TmrID       : -                Session Detect TmrID   : -
  Session Init TmrID     : -                Session WTR TmrID      : -
  Session Echo Tx TmrID  : -
  PDT Index              : FSM-0 | RCV-0 | IF-0 | TOKEN-0
  Session Description    : -
     Total UP/DOWN Session Number : 1/0
