第16章 WLAN

16.1 WLAN VRRP

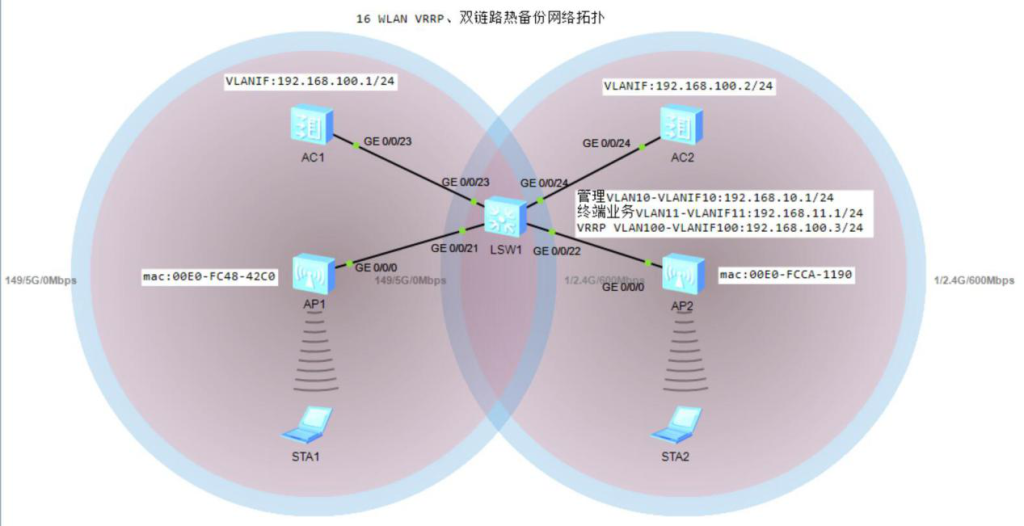

1.配置规划

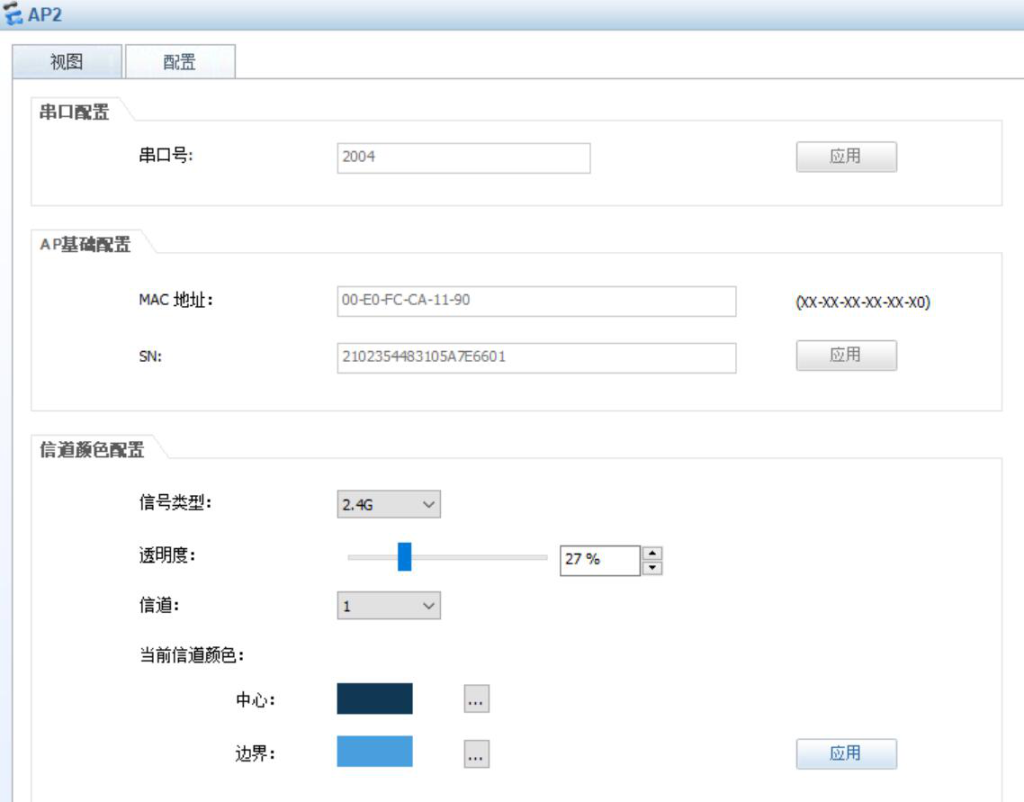

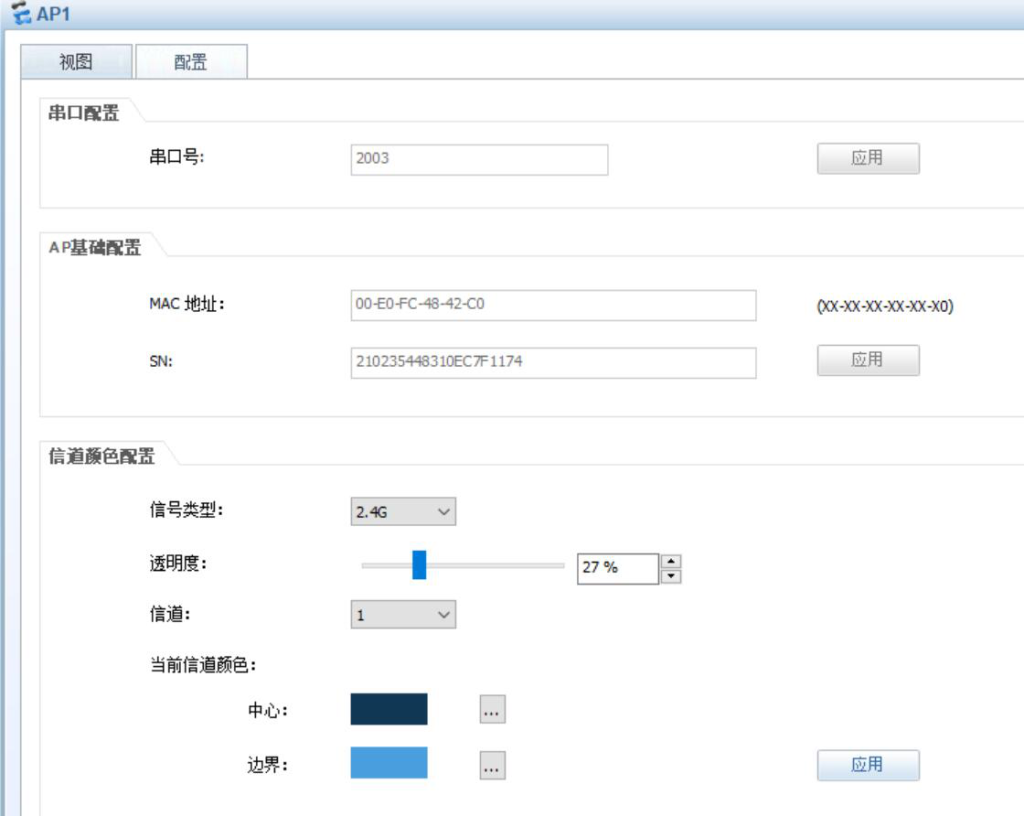

AP管理VLAN ：VLAN10
STA业务VLAN：VLAN11
DHCP服务器：SW1作为DHCP服务器为AP分配IP地址
SW1作为DHCP服务器为STA分配IP地址
AP的IP地址池:192.168.10.0/24
STA的IP地址池:192.168.11.0/24
AC的源接口IP地址:192.168.100.254/24(VRRP虚拟地址)
AP组:名称：dsrw,引用模板：VAP模板dsrw
域管理模板:名称：default,国家码：中国(CN)
SSID模板:名称：dsrw，SSID名称：HSB
安全模板：名称：dsrw，安全策略：WPA2+PSK+AES，密码：dsrw.com
VAP模板:名称：dsrw,转发模式：直连模式,业务VLAN：VLAN11,引用模板：SSID模板dsrw，安全模板：dsrw
VRRP备份组:VRRP组号：1,虚拟IP地址：192.168.100.254/24
HSB:AC1的主备通道IP地址和端口号：192.168.100.1/24
，10241
AC2的主备通道IP地址和端口号：192.168.100.2/24
，10241

2.有线侧网络配置

1)SW1配置VLAN，管理VLAN10、业务VLAN11，并将接口划分到对应的VLAN，SW1连接AP的接口PVID设置为VLAN10，连接AC的接口设置为VLAN100
[SW1]interface GigabitEthernet 0/0/23
[SW1-GigabitEthernet0/0/23]port link-type trunk
[SW1-GigabitEthernet0/0/23]port trunk allow-pass vlan 100

[SW1]interface GigabitEthernet 0/0/24
[SW1-GigabitEthernet0/0/24]port link-type trunk
[SW1-GigabitEthernet0/0/24]port trunk allow-pass vlan 100

[SW1]interface GigabitEthernet 0/0/21
[SW1-GigabitEthernet0/0/21]port link-type trunk
[SW1-GigabitEthernet0/0/21]port trunk pvid vlan 10
[SW1-GigabitEthernet0/0/21]port trunk allow-pass vlan 10 11

[SW1]interface GigabitEthernet 0/0/22
[SW1-GigabitEthernet0/0/22]port link-type trunk
[SW1-GigabitEthernet0/0/22]port trunk pvid vlan 10
[SW1-GigabitEthernet0/0/22]port trunk allow-pass vlan 10 11

2)AC1配置VLAN，并将接口划分到对应的VLAN

[AC1]vlan batch 100
[AC1]interface GigabitEthernet 0/0/23
[AC1-GigabitEthernet0/0/23]port link-type trunk
[AC1-GigabitEthernet0/0/23]port trunk allow-pass vlan 100

3)AC2配置VLAN，并将接口划分到对应的VLAN

[AC2]vlan batch 100
[AC2]interface GigabitEthernet 0/0/24
[AC2-GigabitEthernet0/0/24]port link-type trunk
[AC2-GigabitEthernet0/0/24]port trunk allow-pass vlan 100

5)SW1创建VLANIF，VLANIF10作为AP1、AP2的管理VLAN网关，VLANIF11作为AP1、AP2下终端业务VLAN的网关，VLANIF100用于和AC1、AC2进行三层通信

[SW1]interface Vlanif 10
[SW1-Vlanif10]ip address 192.168.10.1 24
[SW1]interface Vlanif 11
[SW1-Vlanif11]ip address 192.168.11.1 24
[SW1]interface Vlanif 100
[SW1-Vlanif100]ip address 192.168.100.3 24

5)AC1创建VLANIF,AC1的VLANIF100作为CAPWAP通信接口(不是CAPWAP源接口)

[AC1]interface Vlanif 100
[AC1-Vlanif100]IP address 192.168.100.1 24

6)AC2创建VLANIF,AC2的VLANIF100作为CAPWAP通信接口(不是CAPWAP源接口)

[AC2]interface Vlanif 100
[AC2-Vlanif100]IP address 192.168.100.2 24

7)在AC1、AC2上配置前往AP管理网段的路由,AC和获取到管理网段地址的AP进行CAPWAP通信，在AC上手动配置静态路由

[AC1]ip route-static 192.168.10.0 24 192.168.100.3
[AC2]ip route-static 192.168.10.0 24 192.168.100.3

8)在S3上配置DHCP服务

[SW1]dhcp enable
[SW1]ip pool ap
[SW1-ip-pool-ap]network 192.168.10.0 mask 24
[SW1-ip-pool-ap]gateway-list 192.168.10.1
[SW1-ip-pool-ap]option 43 sub-option 3 ascii 192.168.100.254
//地址池ap为AP分配管理地址，携带Option43指定AC地址，该处地址为VRRP虚拟IP

[SW1]ip pool service
[SW1-ip-pool-service]network 192.168.11.0 mask 24
[SW1-ip-pool-service]gateway-list 192.168.11.1
[SW1-ip-pool-service]dns-list 192.168.11.1
//地址池server为AP的无线终端分配地址，所有地址池的网关都设为SW1的VLANIF接口地址

[SW1]interface Vlanif 10
[SW1-Vlanif10]dhcp select global
[SW1]interface Vlanif 11
[SW1-Vlanif11]dhcp select global
//VLANIF下选择全局地址池
