2.2 RIPV2配置详解

2.报文认证:RIPV2支持报文认证，使得RIP路由更安全。

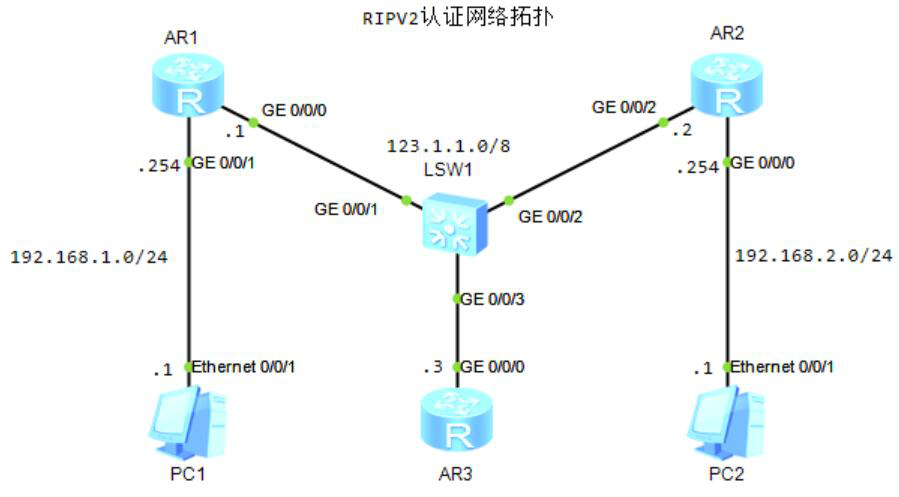

1）基本配置

[R1]rip 1
[R1-rip-1]version 2
[R1-rip-1]network 192.168.1.0
[R1-rip-1]network 123.0.0.0
[R2]rip 1
[R2-rip-1]version 2
[R2-rip-1]network 192.168.2.0
[R2-rip-1]network 123.0.0.0
[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]network 123.0.0.0

2）明文密码认证配置

[R1-GigabitEthernet0/0/0]rip authentication-mode simple plain dsrw.com
[R1-GigabitEthernet0/0/2]rip authentication-mode simple plain dsrw.com
[R1-GigabitEthernet0/0/0]display this
 rip authentication-mode simple plain dsrw.com
[R2-GigabitEthernet0/0/2]display this
 rip authentication-mode simple plain dsrw.com
[R1-GigabitEthernet0/0/0]display this

3）密文密码认证配置

[R1-GigabitEthernet0/0/0]rip authentication-mode simple cipher dsrw.com
[R2-GigabitEthernet0/0/2]rip authentication-mode simple  cipher dsrw.com
 rip authentication-mode simple cipher %$%$r%@Y4U`JSHs9`IXk-Ai#L,ES%$%$
[R2-GigabitEthernet0/0/2]display this
 rip authentication-mode simple cipher %$%$r%@Y4U`JSHs9`IXk-Ai#L,ES%$%$

4）MD5验证配置

[R1-GigabitEthernet0/0/0]rip authentication-mode md5 usual cipher dsrw.com
[R2-GigabitEthernet0/0/2]rip authentication-mode md5 usual cipher dsrw.com
[R1-GigabitEthernet0/0/0]display this
 rip authentication-mode md5 usual cipher %$%$>y^1Zo]'q72Y|M#$H<v;L-i(%$%$
[R2-GigabitEthernet0/0/2]display this
 rip authentication-mode md5 usual cipher %$%$>y^1Zo]'q72Y|M#$H<v;L-i(%$%$
