2.2 RIPV2配置详解

4.路由标记

RIP域内的路由标记字段值被设置成0，从外部引入的路由携带路由标记。

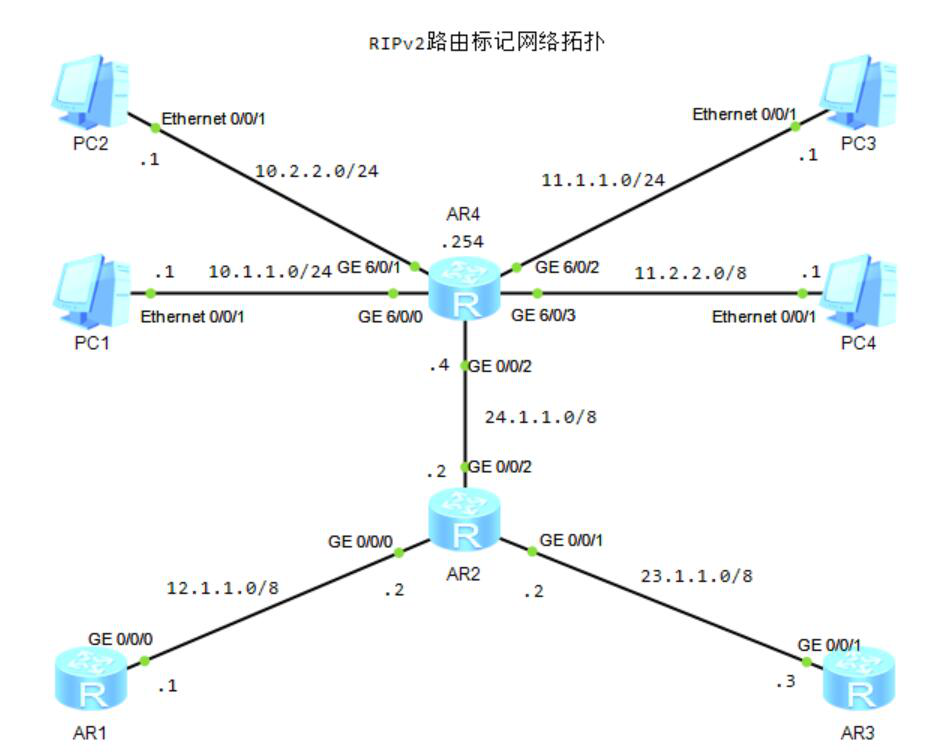

1）基本配置级RIP2配置省略

2）配置静态路由及静态路由引入

[R2]ip route-static 10.1.1.0 24 24.1.1.4 tag 10
[R2]ip route-static 10.2.2.0 24 24.1.1.4 tag 10
[R2]ip route-static 11.2.2.0 24 24.1.1.4 tag 20
[R2]ip route-static 11.1.1.0 24 24.1.1.4 tag 20
[R2-rip-1]import-route static
<R1>display ip routing-table 10.1.1.0 verbose
Destination: 10.1.1.0/24
     Protocol: RIP              Process ID: 1
   Preference: 100                    Cost: 1
      NextHop: 12.1.1.2          Neighbour: 12.1.1.2
        State: Active Adv              Age: 00h12m12s
          Tag: 10                 Priority: low
<R1>display rip 1 database verbose
    10.0.0.0/8, cost 1, ClassfulSumm
   10.1.1.0/24, cost 1, [A]
     NextHop : 12.1.1.2         Intf : GigabitEthernet0/0/0
     EntryID : 0xb4b5abd4       Tag  : 10
     State   : RM Active
   10.2.2.0/24, cost 1, [A]
     NextHop : 12.1.1.2         Intf : GigabitEthernet0/0/0
     EntryID : 0xb4b5ab4c       Tag  : 10
     State   : RM Active
   11.0.0.0/8, cost 1, ClassfulSumm
   11.1.1.0/24, cost 1, [A]
     NextHop : 12.1.1.2         Intf : GigabitEthernet0/0/0
     EntryID : 0xb4b5aac4       Tag  : 20
     State   : RM Active
   11.2.2.0/24, cost 1, [A]
     NextHop : 12.1.1.2         Intf : GigabitEthernet0/0/0
     EntryID : 0xb4b5aa3c       Tag  : 20
     State   : RM Active
