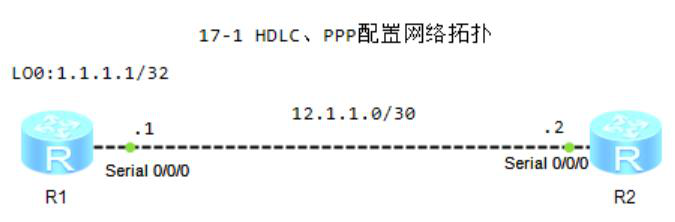

![图片[1]-第17章 HDLC、PPP和FR-17.1 HDLC配置-大赛人网](https://www.dsrw.com/wp-content/uploads/2023/03/图片5-16.png)
1.R1、R2配置
[R1]interface Serial 0/0/0
[R1-Serial0/0/0]link-protocol hdlc
[R1-Serial0/0/0]ip address 12.1.1.1 30
[R2]interface Serial 0/0/0
[R2-Serial0/0/0]link-protocol hdlc
[R2-Serial0/0/0]ip address 12.1.1.2 30
2.IP地址借用
[R1]interface LoopBack 0
[R1-LoopBack0]ip address 1.1.1.1 32
[R1-Serial0/0/0]ip address unnumbered interface LoopBack 0
[R1-Serial0/0/0]display ip interface brief
LoopBack0 1.1.1.1/32 up up(s)
NULL0 unassigned up up(s)
Serial0/0/0 12.1.1.1/30 up up
