14.2 防火墙基本配置

1.配置防火墙接口1/0/1

[FW1]interface GigabitEthernet 1/0/1
[FW1-GigabitEthernet1/0/1]ip address 192.168.1.254 24
[FW1-GigabitEthernet1/0/1]service-manage ping permit
//接口允许ping

2.配置防火墙接口1/0/2

[FW1]interface GigabitEthernet 1/0/2
[FW1-GigabitEthernet1/0/2]ip address 10.1.1.254 24
[FW1-GigabitEthernet1/0/2]service-manage ping permit

3.配置防火墙接口1/0/3

[FW1]interface GigabitEthernet 1/0/3
[FW1-GigabitEthernet1/0/3]ip address 172.16.1.254 24
[FW1-GigabitEthernet1/0/3]service-manage ping permit

4.定义untrust、trust、dmz区

[FW1]firewall zone dmz
[FW1-zone-dmz]add interface GigabitEthernet 1/0/3
[FW1]firewall zone trust
[FW1-zone-trust]add interface GigabitEthernet 1/0/1
[FW1]fire zone untrust
[FW1-zone-untrust]add interface GigabitEthernet 1/0/2

5.检查各区域优先级

[FW1]display zone
2023-02-13 16:46:33.140
local
 priority is 100
 interface of the zone is (0):
#
trust
 priority is 85
 interface of the zone is (2):
    GigabitEthernet0/0/0
    GigabitEthernet1/0/1
#
untrust
 priority is 5
 interface of the zone is (1):
    GigabitEthernet1/0/2
#
dmz
 priority is 50
 interface of the zone is (1):
    GigabitEthernet1/0/3

6.定义安全策略

1）信任区访问非信任区

[FW1]security-policy
[FW1-policy-security]rule name ttout
[FW1-policy-security-rule-ttout]source-zone trust
[FW1-policy-security-rule-ttout]destination-zone untrust
[FW1-policy-security-rule-ttout]source-address 192.168.1.0 24
[FW1-policy-security-rule-ttout]destination-address 10.1.1.1 24
[FW1-policy-security-rule-ttout]service http
[FW1-policy-security-rule-ttout]service icmp
[FW1-policy-security-rule-ttout]action permit

2）非信任区访问dmz可使用telnet ftp icmp访问

[FW1-policy-security]rule name utod
[FW1-policy-security-rule-utod]source-zone untrust
[FW1-policy-security-rule-utod]destination-zone dmz
[FW1-policy-security-rule-utod]source-address 10.1.1.0 24
[FW1-policy-security-rule-utod]destination-address 172.16.1.1 24
[FW1-policy-security-rule-utod]service icmp
[FW1-policy-security-rule-utod]action permit

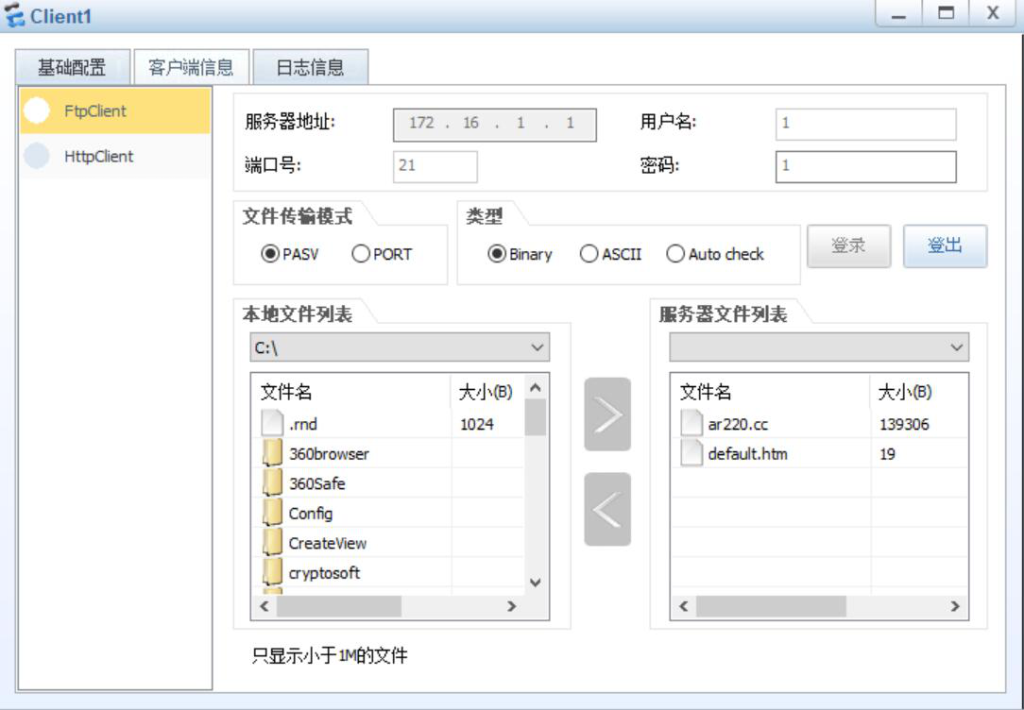

3）信任区访问dmz

[FW1-policy-security]rule name ttod
[FW1-policy-security-rule-ttod]source-zone trust
[FW1-policy-security-rule-ttod]destination-zone dmz
[FW1-policy-security-rule-ttod]source-address 192.168.1.0 24
[FW1-policy-security-rule-ttod]destination-address 172.16.1.1 24
[FW1-policy-security-rule-ttod]service icmp
[FW1-policy-security-rule-ttod]service ftp
[FW1-policy-security-rule-ttod]action permit

4）dmz访问信任区

[FW1-policy-security]rule name dtot
[FW1-policy-security-rule-dtot]source-zone dmz
[FW1-policy-security-rule-dtot]destination-zone trust
[FW1-policy-security-rule-dtot]source-address 172.16.1.0 24
[FW1-policy-security-rule-dtot]destination-address 192.168.1.0 24
[FW1-policy-security-rule-dtot]service icmp
[FW1-policy-security-rule-dtot]action permit

4）本地访问非信任区

[FW1-policy-security]rule name ltou
[FW1-policy-security-rule-ltou]source-zone local
[FW1-policy-security-rule-ltou]destination-zone untrust
[FW1-policy-security-rule-ltou]source-address 192.168.10.0 24
[FW1-policy-security-rule-ltou]destination-address 10.1.1.0 24
[FW1-policy-security-rule-ltou]service http
[FW1-policy-security-rule-ltou]service icmp
