10.3 MUX VLAN

图片[1]-10.3 MUX VLAN-大赛人网

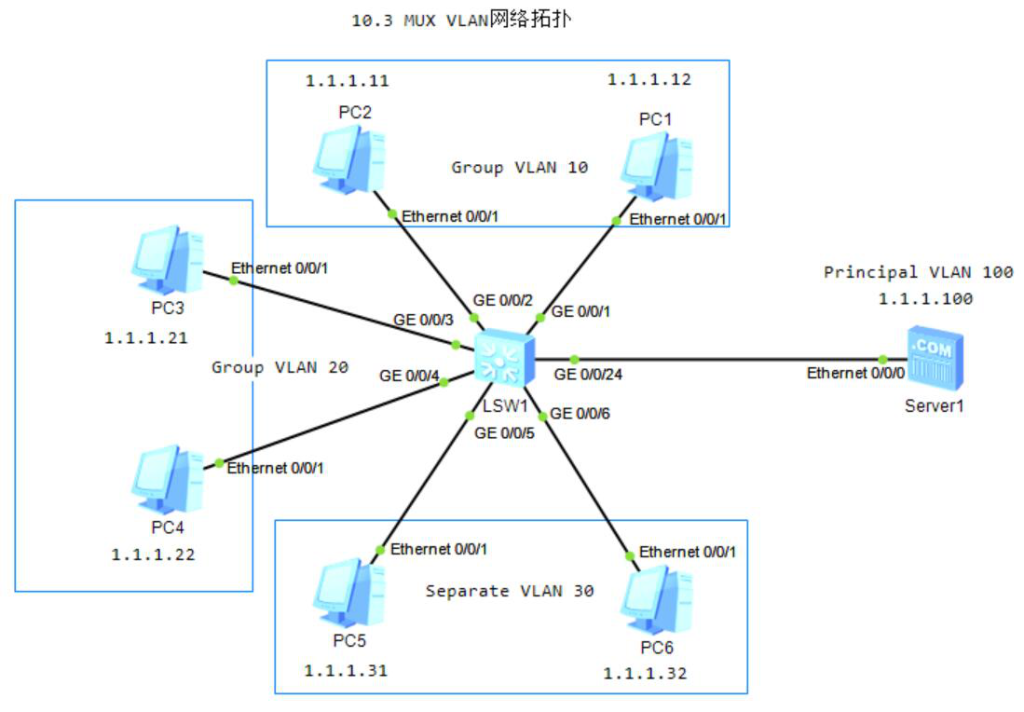

图10-3  MUX VLAN网络拓扑

1.MUX VLAN基础配置

[SW1]vlan batch 10 20 30 100
[SW1]vlan 100
[SW1-vlan100]mux-vlan
[SW1-vlan100]subordinate group 10 20
//指定group VLAN
[SW1-vlan100]subordinate separate 30
//指定separate VLAN

2.接口加入指定VLAN,使能mux-vlan

[SW1]interface GigabitEthernet 0/0/1
[SW1-GigabitEthernet0/0/1]port link-type access
[SW1-port-group-dis]port default vlan 10
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/2
[SW1-GigabitEthernet0/0/2]port link-type access
[SW1-port-group-dis]port default vlan 10
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/3
[SW1-GigabitEthernet0/0/3]port link-type access
[SW1-port-group-dis]port default vlan 20
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/4
[SW1-GigabitEthernet0/0/4]port link-type access
[SW1-port-group-dis]port default vlan 20
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/5
[SW1-GigabitEthernet0/0/5]port link-type access
[SW1-port-group-dis]port default vlan 30
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/6
[SW1-GigabitEthernet0/0/6]port link-type access
[SW1-port-group-dis]port default vlan 30
[SW1-port-group-dis]port mux-vlan enable

[SW1]interface GigabitEthernet 0/0/24
[SW1-GigabitEthernet0/0/24]port link-type access
[SW1-port-group-dis]port default vlan 100
[SW1-port-group-dis]port mux-vlan enable

3.查看mux-vlan

[SW1]display mux-vlan
Principal Subordinate Type         Interface
100       -           principal    GigabitEthernet0/0/24
100       30          separate     GigabitEthernet0/0/5 GigabitEthernet0/0/6
100       10          group        GigabitEthernet0/0/2
100       20          group        GigabitEthernet0/0/3 GigabitEthernet0/0/4
