5.4 BGP团体属性

图片[1]-5.4 BGP团体属性-大赛人网

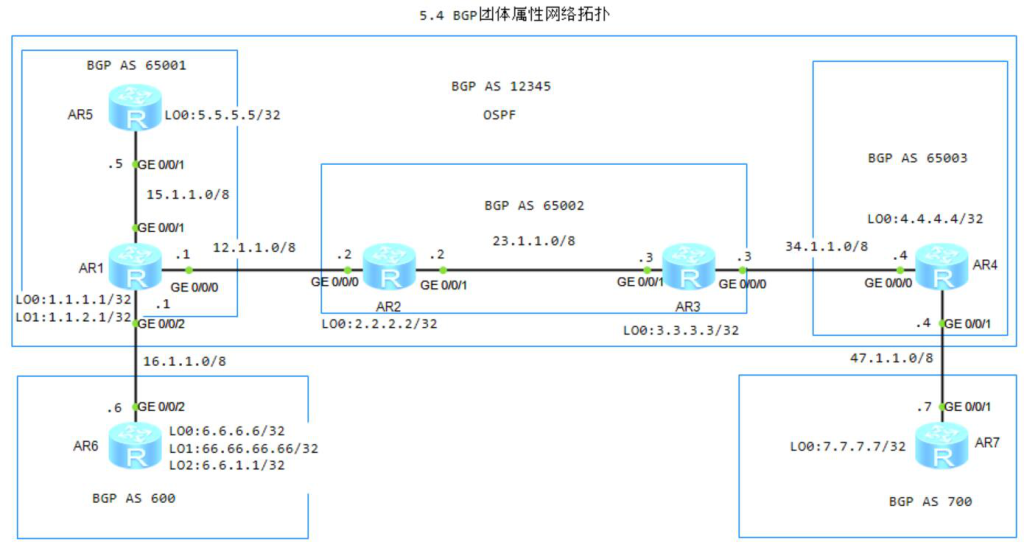

图5-4 BGP团体属性网络拓扑

1.R1配置团体属性no-export-subconfed,携带该值的路由不能公布给任何EBGP对等体,包括联邦内的EBGP邻居

1)R6配置策略,传递no-export-subconfed属性

[R6]interface LoopBack 1
[R6-LoopBack1]ip address 66.66.66.66 32
[R6]bgp 600
[R6-bgp]network 66.66.66.66 32
[R6]ip ip-prefix R6 permit 66.66.66.66 32
[R6]route-policy R6COMM permit node 10
[R6-route-policy]if-match ip-prefix R6
[R6-route-policy]apply community no-export-subconfed
[R6-route-policy]quit
[R6]route-policy R6COMM permit node 20
[R6]bgp 600
[R6-bgp]peer 16.1.1.1 advertise-community
//开启传递团体属性能力
[R6-bgp]peer 16.1.1.1 route-policy R6COMM export

2)R1查看66.66.66.66/32详细BGP路由信息,查看Community:no-export-subconfed属性

<R1>display bgp routing-table 66.66.66.66
BGP local router ID : 1.1.1.1
 Local AS number : 65001
 Paths:   1 available, 1 best, 1 select
 BGP routing table entry information of 66.66.66.66/32:
 From: 16.1.1.6 (6.6.6.6)
 Route Duration: 00h00m01s
 Direct Out-interface: GigabitEthernet0/0/2
 Original nexthop: 16.1.1.6
 Qos information : 0x0
 Community:no-export-subconfed
 AS-path 600, origin igp, MED 0, pref-val 0, valid, external, best, select, active, pre 255
 Advertised to such 1 peers:
    5.5.5.5

3)R2查看BGP路由信息,查看Community:no-export-subconfed属性,不会传递此属性

<R2>display bgp routing-table
 *>i  6.6.6.6/32         1.1.1.1         0          200        0      (65001) 600i

4)R5查看BGP路由信息,查看Community:no-export-subconfed属性,会传递此属性

<R5>display bgp routing-table
 *>i  6.6.6.6/32         1.1.1.1         0          200        0      600i
 *>i  66.66.66.66/32     1.1.1.1         0          200        0      600i

2.R1配置团体属性no-advertise,携带该值的路由不能公布给EBGP和IBGP

1)R6配置策略,传递no-advertise属性

[R6]interface LoopBack 2
[R6-LoopBack2]IP address 6.6.1.1 32
[R6]ip ip-prefix R61 permit 6.6.1.1 32
[R6]route-policy R61COMM permit node 15
[R6-route-policy]if-match ip-prefix R61
[R6-route-policy]apply community no-advertise
[R6-route-policy]quit
[R6]route-policy R61COMM permit node 20
[R6]bgp 600
[R6-bgp]network 6.6.1.1 32
[R6-route-policy]peer 16.1.1.1 route-policy R61COMM export

2)R1查看BGP信息,查看 Community:no-advertise属性

<R1>display bgp routing-table 6.6.1.1
 BGP local router ID : 1.1.1.1
 Local AS number : 65001
 Paths:   1 available, 1 best, 1 select
 BGP routing table entry information of 6.6.1.1/32:
 From: 16.1.1.6 (6.6.6.6)
 Route Duration: 00h02m44s
 Direct Out-interface: GigabitEthernet0/0/2
 Original nexthop: 16.1.1.6
 Qos information : 0x0
 Community:no-advertise
 AS-path 600, origin igp, MED 0, pref-val 0, valid, external, best, select, active, pre 255
 Not advertised to any peer yet

3)R2、R5查看BGP路由信息,携带该值的路由6.6.1.1/32不会通告给任何BGP邻居

<R2>display bgp routing-table
 *>i  6.6.6.6/32         1.1.1.1         0          200        0      (65001) 600i
 *>i  66.66.66.66/32     1.1.1.1         0          200        0      (65001) 600i

<R5>display bgp routing-table
 *>i  6.6.6.6/32         1.1.1.1         0          200        0      600i
 *>i  66.66.66.66/32     1.1.1.1         0          200        0      600i

3.R1配置团体属性no-export,携带该值的路由不能公布给真正的EBGP

1)R1配置策略,传递no-export属性

[R1]interface LoopBack 1
[R1-LoopBack3]ip address 1.1.2.1 32
[R1]route-policy R1 permit node 10
[R1-route-policy]apply community no-export
[R1-route-policy]quit
[R1]bgp 65001
[R1-bgp]network 1.1.2.1 32 route-policy R1

2)R1查看BGP路由, 查看Community:no-export属性

[R1]display bgp routing-table 1.1.2.1
 BGP local router ID : 1.1.1.1
 Local AS number : 65001
 Paths:   1 available, 1 best, 1 select
 BGP routing table entry information of 1.1.2.1/32:
 Network route.
 From: 0.0.0.0 (0.0.0.0)
 Route Duration: 00h00m52s
 Direct Out-interface: InLoopBack0
 Original nexthop: 127.0.0.1
 Qos information : 0x0
 Community:no-export
 AS-path Nil, origin igp, MED 0, pref-val 0, valid, local, best, select, pre 0
 Advertised to such 2 peers:
    2.2.2.2
    5.5.5.5

3)R2、R5、R6查看BGP信息,no-export属性在大AS内传递(R2、R5),没有传递给R6

<R2>display bgp routing-table
*>i  1.1.2.1/32         1.1.1.1         0          200        0      (65001)i

<R5>display bgp routing-table
 *>i  1.1.2.1/32         1.1.1.1         0          200        0      i

<R6>display bgp routing-table
