第10章 多区域OSPFv3

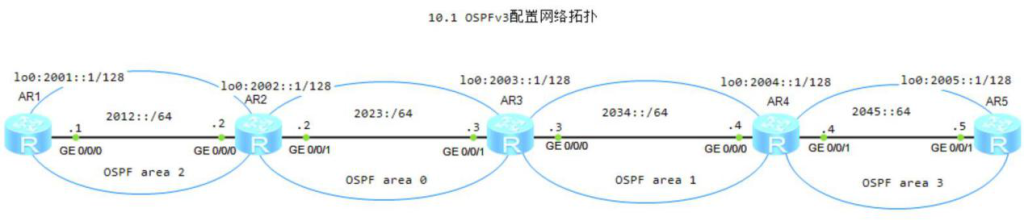

10.1 OSPFv3

1.R1配置OSPFv3

[R1]ospfv3 1
[R1-ospfv3-1]router-id 1.1.1.1
[R1]interface LoopBack 0
[R1-LoopBack0]ospfv3 1 area 2
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]ospfv3 1 area 2

2.R2配置OSPFv3

[R2]ospfv3 1
[R2-ospfv3-1]router-id 2.2.2.2
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]ospfv3 1 area 2
[R2]interface LoopBack 0
[R2-LoopBack0]ospfv3 1 area 0
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]ospfv3 1 area 0

3.R3配置OSPFv3

[R3]ospfv3 1
[R3-ospfv3-1]router-id 3.3.3.3
[R3]interface LoopBack 0
[R3-LoopBack0]ospfv3 1 area 0
[R3]interface GigabitEthernet 0/0/1
[R3-GigabitEthernet0/0/1]ospfv3 1 area 0
[R3]interface GigabitEthernet 0/0/0
[R3-GigabitEthernet0/0/0]ospfv3 1 area 1

4.R4配置OSPFv3

[R4]ospfv3 1
[R4-ospfv3-1]router-id 4.4.4.4
[R4]interface LoopBack 0
[R4-LoopBack0]ospfv3 1 area 1
[R4]interface GigabitEthernet 0/0/0
[R4-GigabitEthernet0/0/0]ospfv3  1 area 1
[R4]interface GigabitEthernet 0/0/1
[R4-GigabitEthernet0/0/1]ospfv3 1 area 3

5.R5配置OSPFv3

[R5]ospfv3 1
[R5-ospfv3-1]router-id 5.5.5.5
[R5]interface LoopBack 0
[R5-LoopBack0]ospfv3 1 area 3
[R5]interface GigabitEthernet 0/0/1
[R5-GigabitEthernet0/0/1]ospfv3 1 area 3

6.R3配置虚电路

[R3]ospfv3 1
[R3-ospfv3-1]area 1
[R3-ospfv3-1-area-0.0.0.1]vlink-peer 4.4.4.4

7.R4配置虚电路

[R4]ospfv3 1
[R4-ospfv3-1]area 1
[R4-ospfv3-1-area-0.0.0.1]vlink-peer 3.3.3.3

8.连通性测试

<R1>ping ipv6 2005::1
  PING 2005::1 : 56  data bytes, press CTRL_C to break
    Request time out
    Reply from 2005::1
    bytes=56 Sequence=2 hop limit=61  time = 60 ms
    Reply from 2005::1
    bytes=56 Sequence=3 hop limit=61  time = 50 ms
    Reply from 2005::1
    bytes=56 Sequence=4 hop limit=61  time = 50 ms
