第12章 IPV6 over IPV4

图片[1]-第12章 IPV6 over IPV4-大赛人网

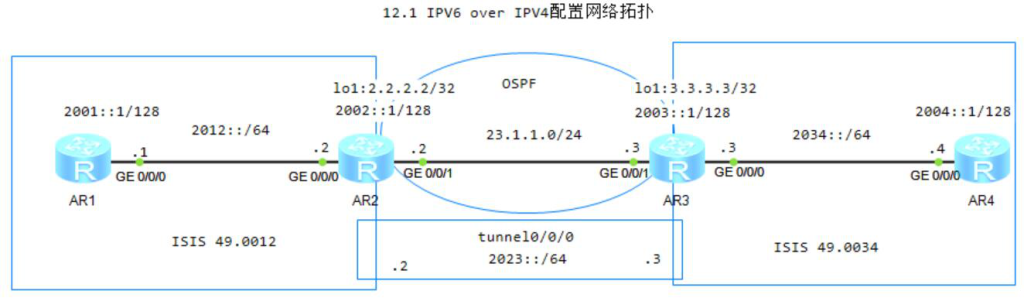

图12-1 IPV6 over IPV4配置网络拓扑

12.1 IPV6 over IPV4

1.R1配置ISIS

[R1]isis 1
[R1-isis-1]network-entity 49.0012.0000.0000.0001.00
[R1-isis-1]ipv6 enable
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]isis ipv6 enable
[R1]interface LoopBack 0
[R1-LoopBack0]isis ipv6 enable

2.R2配置ISIS

[R2]isis 1
[R2-isis-1]network-entity 49.0012.0000.0000.0002.00
[R2-isis-1]ipv6 enable
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]isis  ipv6 enable
[R2]interface LoopBack 0
[R2-LoopBack0]isis ipv6 enable 1

3.R3配置ISIS

[R3]isis  1
[R3-isis-1]network-entity 49.0034.0000.0000.0003.00
[R3-isis-1]ipv6 enable
[R3]interface GigabitEthernet 0/0/0
[R3-GigabitEthernet0/0/0]isis ipv6 enable
[R3]interface LoopBack 0
[R3-LoopBack0]isis ipv6 enable 1

4.R4配置ISIS

[R4]isis 1
[R4-isis-1]network-entity 49.0034.0000.0000.0004.00
[R4-isis-1]ipv6 enable
[R4]interface GigabitEthernet 0/0/0
[R4-GigabitEthernet0/0/0]isis ipv6 enable
[R4]interface LoopBack 0
[R4-LoopBack0]isis ipv6 enabl

5.R2配置OSPF

[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 23.1.1.0 0.255.255.255

6.R3配置OSPF

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]network 23.1.1.0 0.255.255.255

7.R2配置tunnel,并配置IPV6地址

[R2]interface Tunnel 0/0/0
[R2-Tunnel0/0/0]tunnel-protocol ipv6-ipv4
[R2-Tunnel0/0/0]ipv6 enable
[R2-Tunnel0/0/0]ipv6 address 2023::2 64
[R2-Tunnel0/0/0]source 23.1.1.2
[R2-Tunnel0/0/0]destination 23.1.1.3
[R2-Tunnel0/0/0]isis ipv6 enable

8.R3配置tunnel,并配置IPV6地址

[R3]interface Tunnel 0/0/0
[R3-Tunnel0/0/0]tunnel-protocol ipv6-ipv4
[R3-Tunnel0/0/0]ipv6 enable
[R3-Tunnel0/0/0]ipv6 address 2023::3 64
[R3-Tunnel0/0/0]source 23.1.1.3
[R3-Tunnel0/0/0]destination 23.1.1.2
[R3-Tunnel0/0/0]isis ipv6 enable 1

9.R1连通性测试R4

<R1>ping ipv6 -a 2001::1 2004::1
  PING 2004::1 : 56  data bytes, press CTRL_C to break
    Reply from 2004::1
    bytes=56 Sequence=1 hop limit=62  time = 40 ms
