第29章 域间组播配置

图片[1]-第29章 域间组播配置-大赛人网

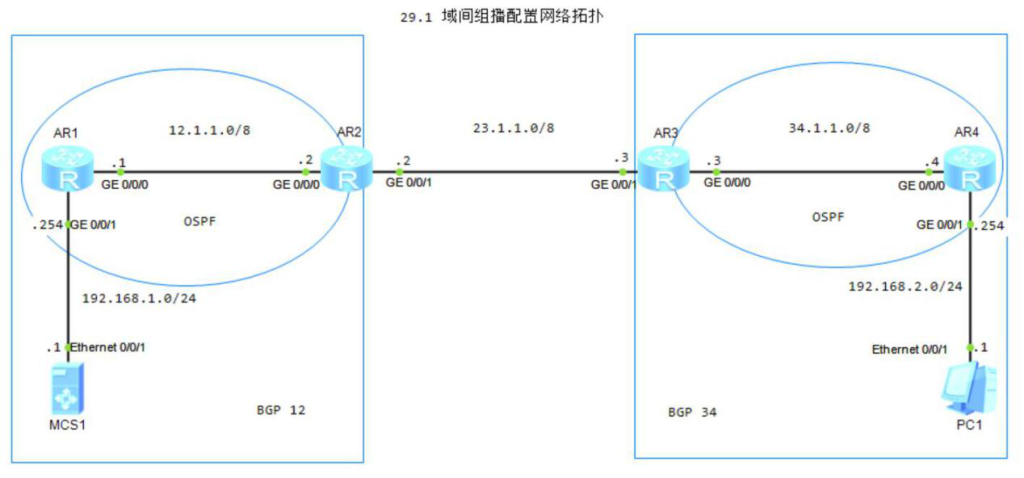

图29-1 域间组播配置网络拓扑

1.R1配置OSPF

[R1]ospf 1 router-id 1.1.1.1
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255
[R1-ospf-1-area-0.0.0.0]network 12.1.1.0 0.255.255.255

2.R2配置OSPF

[R2]ospf 1 router-id 2.2.2.2
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]network 2.2.2.2 0.0.0.0
[R2-ospf-1-area-0.0.0.0]network 12.1.1.0 0.255.255.255

3.R3配置OSPF

[R3]ospf 1 router-id 3.3.3.3
[R3-ospf-1-area-0.0.0.0]network 3.3.3.3 0.0.0.0
[R3-ospf-1-area-0.0.0.0]network 34.1.1.0 0.255.255.255

4.R4配置OSPF

[R4]ospf 1 router-id 4.4.4.4
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]network 34.1.1.0 0.255.255.255
[R4-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255

5.R2配置BGP,与OSPF相互引入

[R2]bgp 12
[R2-bgp]router-id 2.2.2.2
[R2-bgp]peer 23.1.1.3 as
[R2-bgp]peer 23.1.1.3 as-number 34
[R2-bgp]import-route ospf 1
[R2]ospf 1
[R2-ospf-1]import-route bgp

6.R3配置BGP,与OSPF相互引入

[R3]bgp 34
[R3-bgp]peer 23.1.1.2 as-number 12
[R3-bgp]import-route ospf 1
[R3]ospf 1
[R3-ospf-1]import-route bgp

7.R1配置PIM-SM

[R1]multicast routing-enable
[R1]interface GigabitEthernet 0/0/0
[R1-GigabitEthernet0/0/0]pim sm
[R1]interface GigabitEthernet 0/0/1
[R1-GigabitEthernet0/0/1]pim sm

8.R2配置PIM-SM

[R2]multicast routing-enable
[R2]interface GigabitEthernet 0/0/0
[R2-GigabitEthernet0/0/0]pim sm
[R2]interface GigabitEthernet 0/0/1
[R2-GigabitEthernet0/0/1]pim bsr-boundary
[R2-GigabitEthernet0/0/1]pim sm
[R2]interface LoopBack 0
[R2-LoopBack0]pim sm
[R2]pim
[R2-pim]c-bsr LoopBack 0
[R2-pim]c-rp LoopBack 0

 9.R3配置PIM-SM

[R3]multicast routing-enable
[R3]interface GigabitEthernet 0/0/0
[R3-GigabitEthernet0/0/0]pim sm
[R3]interface GigabitEthernet 0/0/1
[R3-GigabitEthernet0/0/1]pim bsr-boundary
[R3-GigabitEthernet0/0/1]pim sm
[R3]interface LoopBack 0
[R3-LoopBack0]pim sm
[R3]pim
[R3-pim]c-bsr LoopBack 0
[R3-pim]c-rp LoopBack 0

10.R4配置PIM-SM

[R4]multicast routing-enable
[R4]interface GigabitEthernet 0/0/0
[R4-GigabitEthernet0/0/0]pim sm
[R4]interface GigabitEthernet 0/0/1
[R4-GigabitEthernet0/0/1]pim sm
[R4-GigabitEthernet0/0/1]igmp enable

11.R2配置msdp

 [R2]msdp
[R2-msdp]peer 23.1.1.3 connect-interface GigabitEthernet 0/0/1

12.R3配置msdp

[R3]msdp
[R3-msdp]peer 23.1.1.2 connect-interface GigabitEthernet 0/0/1

13.验证BGP对等体关系

<R2>display bgp peer
23.1.1.3        4          34       67       70     0 01:02:47 Established       3
 <R3>display bgp peer
 23.1.1.2        4          12       70       68     0 01:03:11 Established       3

14.验证BGP路由表

<R3>display bgp routing-table
  *>   2.2.2.2/32         23.1.1.2        0                     0      12?
 *>   3.3.3.3/32         0.0.0.0         0                     0      ?
 *>   12.0.0.0           23.1.1.2        0                     0      12?
 *>   34.0.0.0           0.0.0.0         0                     0      ?
 *>   192.168.1.0        23.1.1.2        2                     0      12i
 *>   192.168.2.0        0.0.0.0         2                     0      ?

15.验证MSDP对等体建立情况

<R2>display msdp brief
23.1.1.3         Up        01:00:45        34          0          0

16.PC1发送组播信息,查看PIM路由表

<R2>display pim routing-table
 VPN-Instance: public net
 Total 0 (*, G) entry; 1 (S, G) entry

 (192.168.1.1, 224.1.1.1)
     RP: 2.2.2.2 (local)
     Protocol: pim-sm, Flag: SPT 2MSDP ACT
     UpTime: 00:00:15
     Upstream interface: GigabitEthernet0/0/0
         Upstream neighbor: 12.1.1.1
         RPF prime neighbor: 12.1.1.1
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: GigabitEthernet0/0/1
             Protocol: pim-sm, UpTime: 00:00:15, Expires: 00:03:15
